BX25 Weight Indicator

BX25 is a high accurate, multifunctional weighing terminal which is used in wet, hygienic and harsh industrial areas. It can be connected to two weighing platforms and it has total scale.
This weighing terminal can be programmable for weighing, labelling, check weighing, classifying, filling, piece counting and dynamic weighing applications. Three user programmable keys and two touch free keys can be set for user applications to provide practical and error free operation. The instrument has 6 pcs memories; ID1, ID2, preset tare, APW, item limit values; each have 500 records capacity.

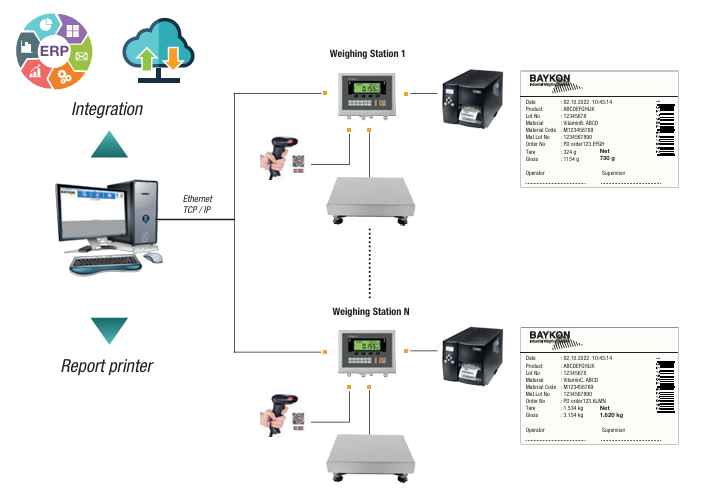

BX25 has important features for process weighing; strong calibration alternatives including electronic calibration (eCal) and various integration interfaces with PC or PLC via RS232C, RS485, Ethernet TCP/IP, Fieldbuses such as Profibus, Profinet, CANopen, EtherCAT, CC-Link, Powerlink, Modbus RTU, Modbus TCP, EtherNet/IP, Analogue output, Parallel I/Os.

Main Features

  • IP67 protected for wet, hygienic and harsh areas
  • 2 platform connections & total scale
  • Colour changing display, SmartBar

High Technology & Performance

  • Up to 999 999 display resolution
  • Up to 800 conversion per second
  • Application based SmartAPP
  • Changing colour for prompting
  • High capacity tank scales supported by eCAL electronic calibration & span correction of non-empty tanks  & 16 digit alphanumeric info line
  • User programmable 3 keys and 2 touch free keys for applications
  • Data entry via barcode reader

Integration & Connectivity

  • Profibus, Profinet, CANopen, Ethernet TCP/IP, EtherNet/IP EtherCAT, CC-Link, Powerlink, Modbus RTU, Modbus TCP, Analogue output with Digital I/Os
  • 2 opto isolated RS232C and RS485 serial ports and Ethernet TCP/IP are standard
  • Mini USB port
