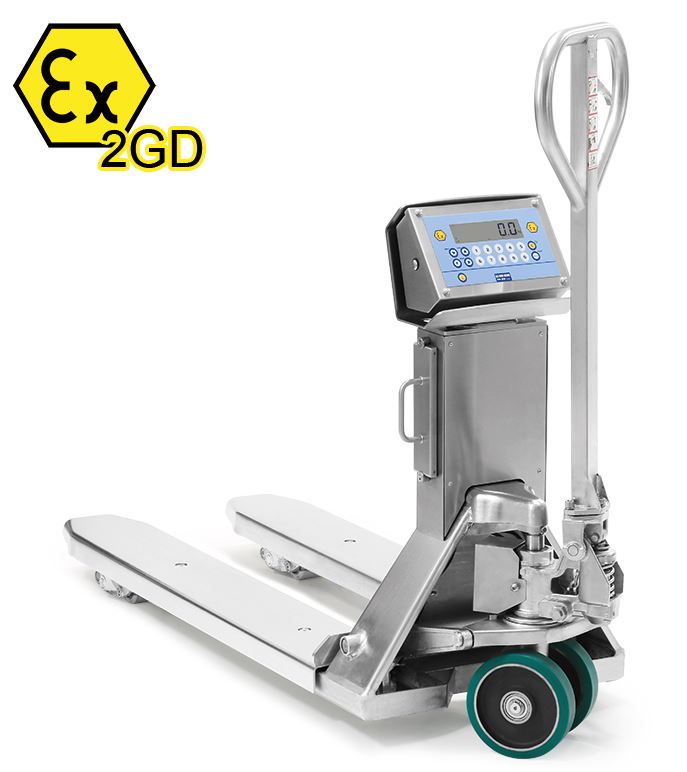

ATEX Pallet Truck Scales large image

ATEX Pallet Truck Scales

Pallet truck scales, with built-in electronic weighing, for dangerous areas classified as hazardous (ZONES 1 and 21 & 2 and 22) in accordance with Ex II 2GD IIB T4 T197°C X.
The Atex certified four load cell weight detection IP68 guarantees the best accuracy in all work conditions. Available also CE-M APPROVED

Features

  • Maximum lifting capacity: 2500 kg.
  • Accuracy: +/- 0.05% of the maximum capacity.
  • Fork dimensions 1150 x 550 x 85 mm.
  • Weighs about 125 kg.
  • Bearing structure in extra thick sheet steel and oven-fire painted interior construction.
  • Standard fitted with +/-160° swivelling column head.
  • Steering wheels and double loading rollers with a poliurethane coating.
  • Atex certified, 4 stainless steel IP68 shear-beam load cells.
  • Indicator with easy to clean satined stainless steel case with IP68 enclosure built to withstand humid and dusty environments; large LCD display 25-mm high contrast digits which are clearly visible even in poor lighting conditions; 17-key numerical/functional membrane waterproof keyboard.
  • Calibration and Set-Up parameters configurable from keyboard.
  • Power supply through extractable battery, rechargeable in safe zone.
  • 150-hour approximate operating time.
  • Equipped with 230Vac 50 Hz battery charger to be recharged in a safe area.
WARNING
With ATEX weighing systems, when directly weighing light metals (such as aluminum, magnesium, titanium and their alloys), it is necessary to use the STAINLESS STEEL loading forks.
