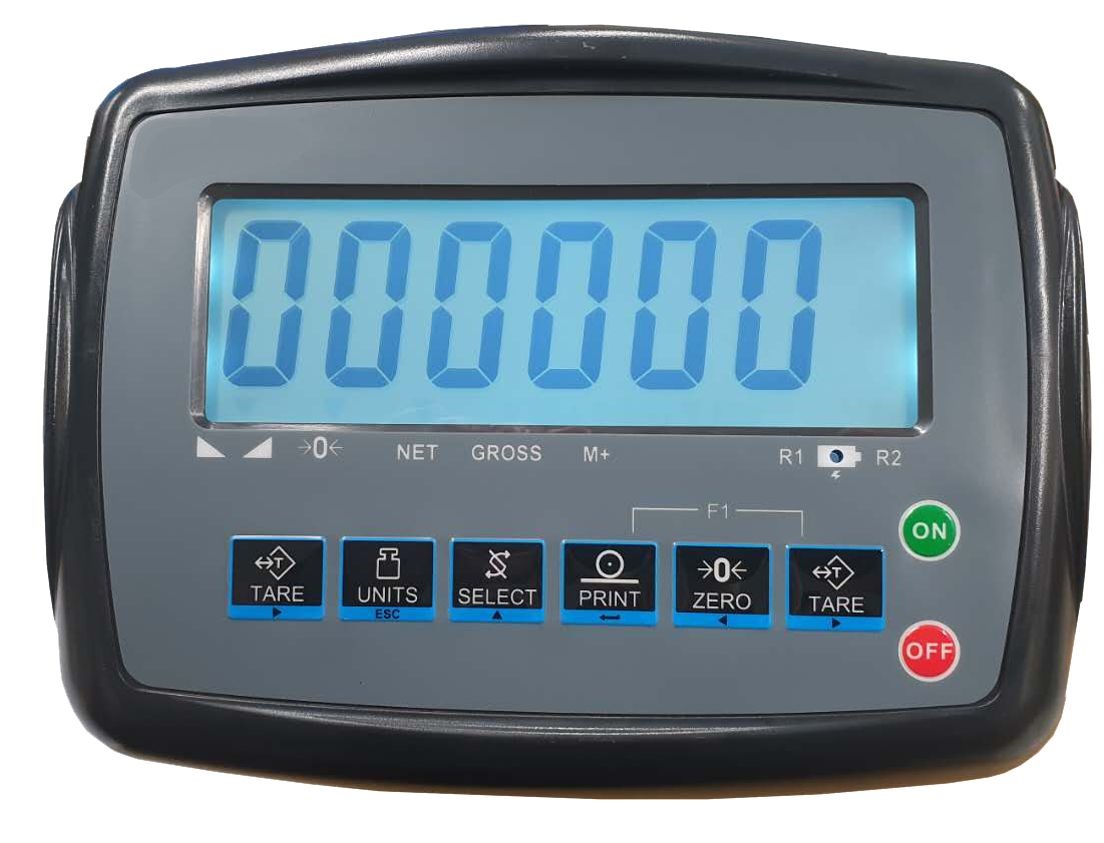

CWB7 Weighing Indicator

Simple to use, the CWB7 weighing indicator has a large 40 mm LCD with a white backlit display, powered by an internal rechargeable battery for extended continuous use, charged via an AC adaptor. It can be fitted to any size platform scale and mounted on a column, wall or bench, making it a flexible indicator upgrade for many existing scale bases.

Specification

The CWB7 features a 40 mm LCD, 6 digit display with a white backlight, housed in a compact 240 x 105 x 180 mm enclosure. It can be bench or pole mounted, and connects to both bench and floor platforms, so the same indicator can be specified across different scale types on site. Power is supplied by a rechargeable internal battery, rated for up to 800 hours of continuous use between charges, with charging carried out via a 240 Vac power supply, giving the indicator long working periods away from a fixed mains connection.

Capacity & Application

Core functions include tare, selectable units, net/gross switching, print, zero and on/off control, alongside dedicated weighing, counting and check weighing (HI-OK-L) modes, so the CWB7 can be used for straightforward weighing as well as counting and pass/fail check weighing tasks. Because it connects to both bench and floor platforms and can be bench or pole mounted, it suits a wide range of industrial and commercial weighing applications where an existing platform needs a clear, simple, long-running indicator. The long battery life between charges makes it well suited to sites where a permanent mains connection at the weighing point is inconvenient or unavailable.

Approvals

Phoenix Scales is a UKAS ISO 17025 accredited calibration laboratory and an ISO 9001:2015 and Cyber Essentials certified company. We supply, install and calibrate the CWB7 weighing indicator with UKAS-traceable certification, and our engineers provide ongoing servicing, repair and re-calibration support to keep the indicator and the platform it is connected to operating accurately throughout their working life.
