Wireless Weigh Pads
Wireless platforms designed for creating wheel and axle vehicle weighing stations, avoiding the hassle of connecting cables between the platforms and the indicator. Platforms designed for creating weighing stations for large vehicles (vans, trucks, tankers, tractor-trailers, etc.); particularly accurate and sturdy.
Features
- Sturdy structure, made in special aluminium, which guarantees lightness and makes these suitable also for harsh working conditions.
- Stainless steel load cells.
- Overall IP68 protection.

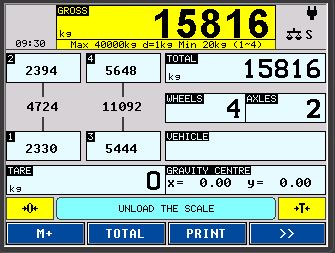

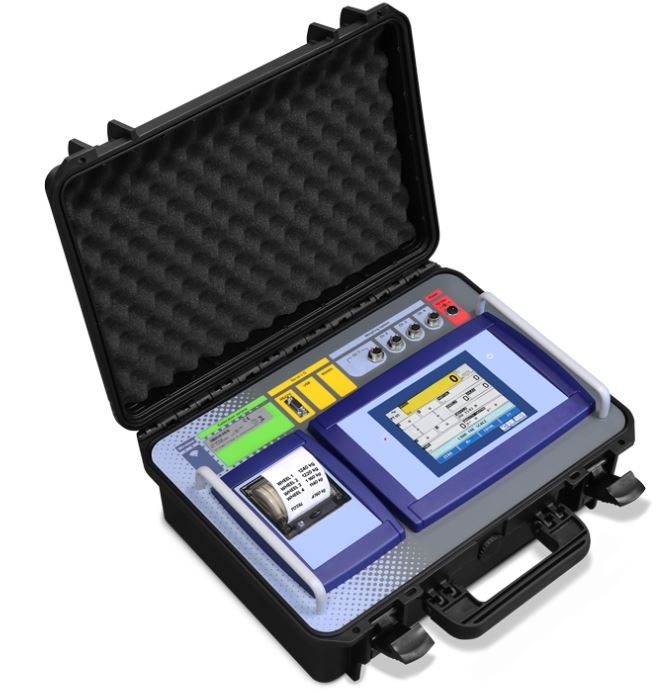

- Sturdy built-in weight indicator with waterproof keyboard and backlit display.
- Built-in radio module for weight transmission to a remote indicator or external device.
- Integrated wheels for easy transport and positioning.
- Internal rechargeable battery (about 40 h battery life) and charger included
- Special vulcanised nonslip rubber applied under the platform, for good grip on all types of surfaces.
| Model | Plate Size mm | Capacity | Resolution |
| WWSC1.5TRF-2 | 565 x 400 x 58 | 1500 kg | 0.5 kg |
| WWSC3TRF-2 | 565 x 400 x 58 | 3000 kg | 1 kg |
| WWSC6TRF-2 | 565 x 400 x 58 | 6000 kg | 2 kg |
| WWSC10TRF-2 | 565 x 400 x 58 | 10000 kg | 5 kg |
| WWSC15TRF-2 | 565 x 400 x 58 | 15000 kg | 5 kg |
| WWSE6TRF-5 | 750 x 450 x 58 | 6000 kg | 2 kg |
| WWSE10TRF-5 | 750 x 450 x 58 | 10000 kg | 5 kg |
| WWSE15TRF-5 | 750 x 450 x 58 | 15000 kg | 5 kg |
| WWSD6TRF-5 | 950 x 500 x 59 | 6000 kg | 2 kg |
| WWSD10TRF-5 | 950 x 500 x 59 | 10000 kg | 5 kg |
| WWSD15TRF-5 | 950 x 500 x 59 | 15000 kg | 5 kg |
| WWSD20TRF-5 | 950 x 500 x 59 | 20000 kg | 10 kg |
